6.4.1 Hammer Projection (-Jh -JH)

The equal-area Hammer projection, first presented by Ernst von Hammer in 1892, is also known as Hammer-Aitoff (the Aitoff projection looks similar, but is not equal-area). The border is an ellipse, equator and central meridian are straight lines, while other parallels and meridians are complex curves. The projection is defined by selecting:

$\bullet$
The central meridian

$\bullet$
Scale along equator in inch/degree or 1:xxxxx (-Jh), or map width (-JH)

A view of the Pacific ocean using the Dateline as central meridian is accomplished thus





pscoast -Rg -JH180/4.5i -Bg30/g15 -Dc -A10000 -Gblack -P > GMT_hammer.ps

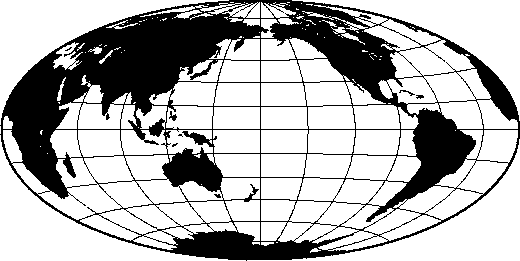

Figure 6.21: World map using the Hammer projection.
\begin{figure}\centering\epsfig{figure=eps/GMT_hammer.eps}\end{figure}
