N. Custom Plot Symbols

GMT comes with several custom plot symbols ready to go. They are used in psxy and psxyz using the -Sk option. To make your own custom plot symbol, please follow the instructions given in the man pages of those two programs. The following is a plot of each symbol. Note that we only show the symbol outline and not any fill. Be aware that some symbols may have a hardwired fill or no-fill component. Also note that some symbols, in particular the geometric ones, appears to duplicate what is already available as built-in symbols. However, the custom symbols differ in that they may be filled with patterns.

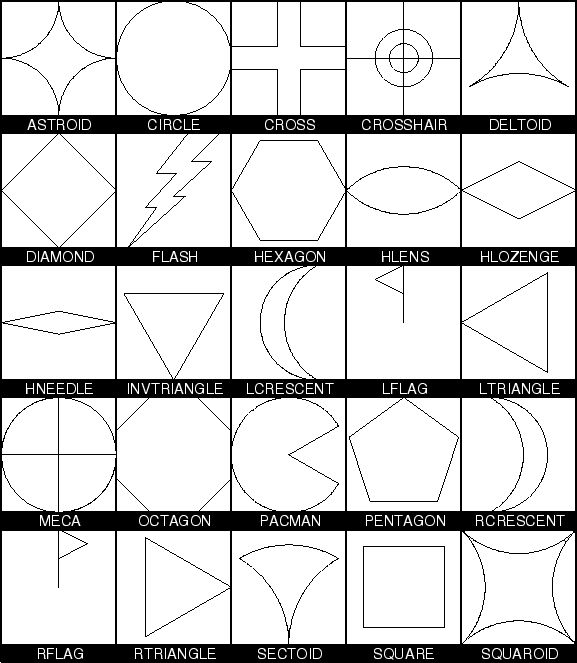

Figure N.1: Custom plot symbols supported by GMT.
\begin{figure}\centering\epsfig{figure=eps/GMT_App_N_1.eps}\end{figure}

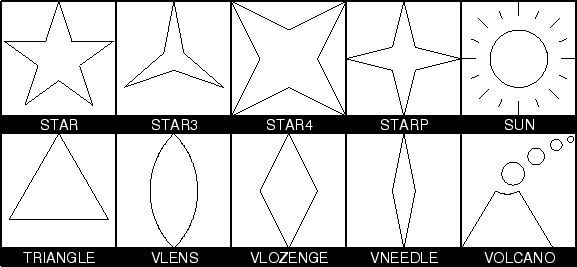

Figure N.2: Additional custom plot symbols
\begin{figure}\centering\epsfig{figure=eps/GMT_App_N_2.eps}\end{figure}
