6.2.2.3 General Stereographic Map

In terms of usage this projection is identical to the Lambert azimuthal equal-area projection. Thus, one can make both rectangular and hemispheric maps. Our example shows Australia using a projection pole at 130E/30$^{o}$S. The command used was





gmtset PLOT_DEGREE_FORMAT ddd:mm:ss OBLIQUE_ANNOTATION 0
pscoast -R100/-40/160/-10r -JS130/-30/4i -B30g10/15g15 -Dl -A500 -Gblack -P \
    > GMT_stereographic_general.ps

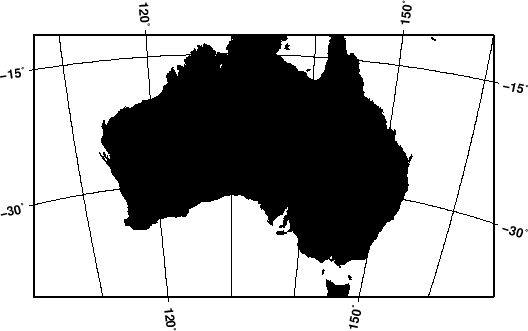

Figure 6.9: General stereographic conformal projection with rectangular borders.
\begin{figure}\centering\epsfig{figure=eps/GMT_stereographic_general.eps}\end{figure}

By choosing 0$^{o}$/0$^{o}$as the pole, we obtain the conformal stereonet presented next to its equal-area cousin in the Section 6.2.1 on the Lambert azimuthal equal-area projection (Figure 6.6).
