We want to create two contour maps of the low order geoid
using the Hammer equal area projection. Our gridded data
file is called osu91a1f_16.grd and contains a global 1
by 1 gridded geoid (we will see how to make gridded
files later). We would like to show one map centered on
Greenwich and one centered on the dateline. Positive contours
should be drawn with a solid pen and negative contours with
a dashed pen. Annotations should occur for every 50 m contour
level, and both contour maps should show the continents in
light gray in the background. Finally, we want a rectangular
frame surrounding the two maps. This is how it is done:
#!/bin/csh # GMT EXAMPLE 01 # # $Id: job01.csh,v 1.9 2004/05/26 03:25:22 pwessel Exp $ # # Purpose: Make two contour maps based on the data in the file osu91a1f_16.grd # GMT progs: gmtset grdcontour psbasemap pscoast # Unix progs: rm # gmtset GRID_CROSS_SIZE 0 ANNOT_FONT_SIZE_PRIMARY 10 psbasemap -R0/6.5/0/9 -Jx1i -B0 -P -K -U"Example 1 in Cookbook" >! example_01.ps pscoast -Rg -JH0/6i -X0.25i -Y0.5i -O -K -Bg30 -Dc -Glightgray >> example_01.ps grdcontour -R osu91a1f_16.grd -J -C10 -A50+s7 -Gd4i -L-1000/-1 -Wc0.25p,- -Wa0.75p,- -O -K \ -T0.1i/0.02i >> example_01.ps grdcontour -R osu91a1f_16.grd -J -C10 -A50+s7 -Gd4i -L-1/1000 -O -K -T0.1i/0.02i >> example_01.ps pscoast -Rg -JH180/6i -Y4i -O -K -Bg30:."Low Order Geoid": -Dc -Glightgray >> example_01.ps grdcontour osu91a1f_16.grd -J -C10 -A50+s7 -Gd4i -L-1000/-1 -Wc0.25p,- -Wa0.75p,- -O -K \ -T0.1i/0.02i:-+ >> example_01.ps grdcontour osu91a1f_16.grd -J -C10 -A50+s7 -Gd4i -L-1/1000 -O -T0.1i/0.02i:-+ >> example_01.ps \rm -f .gmtcommands4 .gmtdefaults4

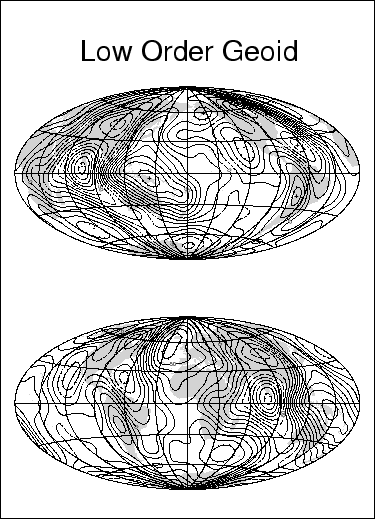

The first command draws a box surrounding the maps. This is followed by two sequences of pscoast, grdcontour, grdcontour. They differ in that the first is centered on Greenwich; the second on the dateline. We use the limit option (-L) in grdcontour to select negative contours only and plot those with a dashed pen, then positive contours only and draw with a solid pen [Default]. The -T option causes tickmarks pointing in the downhill direction to be drawn on the innermost, closed contours. For the upper panel we also added - and + to the local lows and highs. You can find this illustration as Figure 7.1.
